series
Blood Pressure Unit
(Pat.P.)
Features
_edited_edited_edited.jpg)
![[MiViVo]_BPU②](https://static.wixstatic.com/media/a26fa5_fa2e1726034643239ef31c2079856a76~mv2.gif)

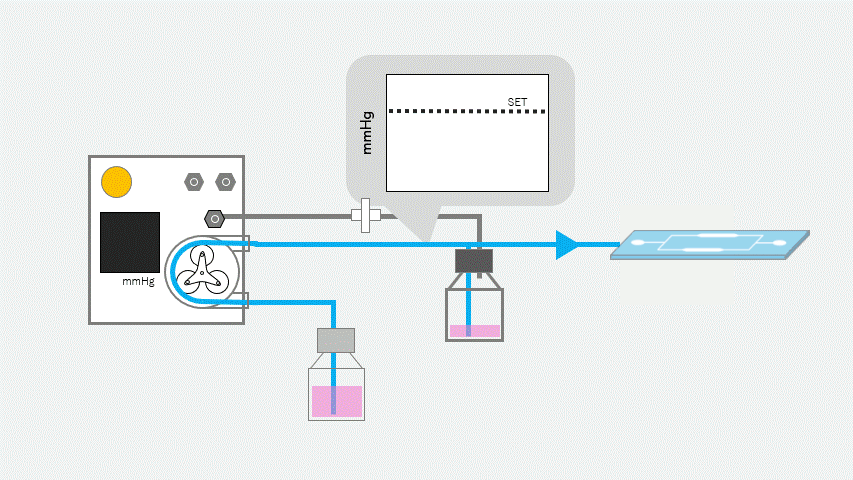

Non-contact pressure measurement
It measures the flow path pressure during perfusion, aseptically.
By feeding back to the pump, constant pressure liquid feeding is also possible.
* The illustration is an image of one line.
The pump unit can be installed in a CO2 incubator
Adopts a moisture-proof design and shield technology.
It is possible to install a perfusion system, including a pump, in a CO2 incubator.
It will control the two channels independently.
Touch panel controller
You can intuitively switch between constant pressure/pulsation and constant pressure/constant flow rate perfusion modes.
The data logging function is available, as standard.
System configuration
Controller
It controls the pump and sets the parameter.
A touch panel is used to operate the pump, at constant pulsating pressure and flow rates.
Pump
The pumps are housed in a container with a moisture-proof design and shielding technology.
It controls each of the two channel lines and the two pumps independently.
There is a pump that can be used for general purposes, such as drainage in the container.
Buffer bottle
Using a unique mechanism that measures the flow path pressure via a buffer bottle, aseptic and a reusable sensing of channel pressure is possible.
Specification
Model
Components
size
BPU
Controller, pump unit
Pump unit: Width 175 x Height 164 x Depth 214 [mm]
Controller unit: Width 150 x Height 126 x Depth 199 [mm]
Cable length: 2.0 [m]
Control Range
Pulsatile flow mode flow rate setting range: 0.2 to 6.0 mL/min
Time setting: 1 second intervals
Constant pressure mode pressure setting range: 0 to 200 mmHg
Setting STEP: 1 mmHg
Constant flow rate mode Flow rate setting range: 0.2 to 6.0 ml/min
Setting step: 0.01 ml/min
